If you’re specifying steel for a retaining wall or residential construction project in Victoria, the 200UB18 is one of the most commonly recommended Universal Beam sizes. Lightweight enough for easy handling yet strong enough for most residential retaining applications, this section offers an excellent balance of performance and value. In this guide, we cover everything you need to know about the 200UB18 — from its dimensions and section properties through to its real-world performance as retaining wall posts.
RW Steel Victoria stocks a full range of retaining wall steel products including the 200UB18, available cut-to-length and delivered across Melbourne and regional Victoria.
Whether you’re a builder, engineer, or experienced DIYer, understanding the specification behind the 200UB18 designation helps you make smarter material choices. Read on for the full breakdown.

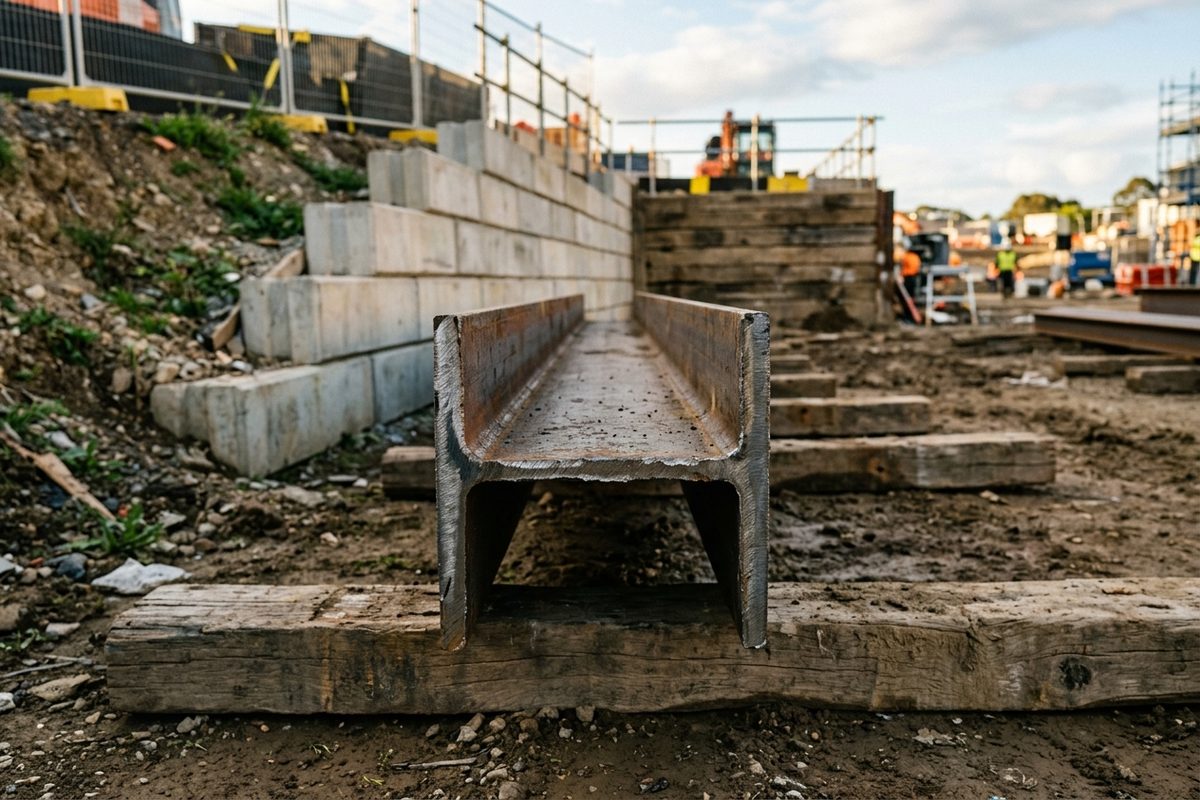

What Does 200UB18 Mean?
The 200UB18 designation follows the Australian standard naming convention for structural steel sections. Breaking it down:
- 200 — Nominal depth of the section in millimetres (actual depth is approximately 198 mm)
- UB — Universal Beam, an I-section designed primarily to resist bending loads
- 18 — Linear mass (weight) of 18 kg per metre of beam length
Universal Beams have wider flanges relative to their depth compared to older RSJ (Rolled Steel Joist) sections, giving them superior bending resistance and more predictable behaviour under load. The 200UB18 is the lightest section in the 200 UB family and is manufactured to AS/NZS 3679.1 in Grade 300 steel as standard.
200UB18 Key Specifications
The following dimensions and section properties apply to the standard Grade 300 200UB18 per AS/NZS 3679.1:
| Property | Value |
|---|---|
| Nominal Depth (d) | 198 mm |
| Flange Width (bf) | 133 mm |
| Web Thickness (tw) | 4.5 mm |
| Flange Thickness (tf) | 7.0 mm |
| Mass per metre | 18.2 kg/m |
| Cross-Section Area | 2,320 mm² |
| Second Moment of Area (Ix) | 15.8 × 10⁶ mm⁴ |
| Elastic Section Modulus (Zx) | 160 × 10³ mm³ |
| Plastic Section Modulus (Sx) | 181 × 10³ mm³ |
| Yield Stress (fy) | 300 MPa |
These properties make the 200UB18 a versatile section for applications where a moderate section modulus and low self-weight are priorities. Its relatively thin web (4.5 mm) keeps the section lightweight without significantly compromising shear capacity for typical residential spans.
Why the 200UB18 Is So Popular for Retaining Walls
The 200UB18 has earned its place as a go-to retaining wall post section for several practical reasons:
- Handleable weight: At 18.2 kg/m, a standard 3 m post weighs around 55 kg — manageable with two people without machinery
- Flange width of 133 mm: Wide enough to support standard 75 mm hardwood or treated pine sleepers spanning between posts
- Proven performance: Widely used across Victoria for walls up to 1.2–1.5 m in height at typical post spacings of 1.8–2.4 m
- Cost-effective: As the lightest 200 UB section, material costs are lower than heavier alternatives while meeting most residential load requirements
For an overview of surface treatment options including hot-dip galvanising, see our guide on galvanised steel retaining wall posts to understand how to extend service life in aggressive soil conditions.
Load Capacity Considerations
The bending capacity of a 200UB18 post depends on several variables: the retained height of soil, post spacing, soil pressure (passive and active), and any surcharge loads (vehicle traffic, structures above). For preliminary guidance:
- A 200UB18 post embedded 1.0–1.2 m into the ground and projecting 0.9–1.2 m above typically suits low-to-moderate surcharge residential applications
- For retained heights exceeding 1.5 m, or where vehicular surcharge applies, move up to a 200UB22 or 200UB25, or consider a UC section
- Post spacing tighter than 1.8 m reduces the bending moment demand on each post and can extend the viability of the 200UB18 for taller walls
Universal Columns (UC sections) offer a more compact, equal-flange profile which some engineers prefer for post-in-ground applications. For a detailed comparison, read our UC sections guide. If you’re unsure which section to specify, our guide on choosing the right steel beam size covers the selection process step by step.
Important: For walls over 1.0 m in retained height, AS 4678 and local council requirements may mandate engineer certification. Always verify with your certifier or structural engineer before construction.
Installing 200UB18 Posts for Timber Sleeper Walls
When using 200UB18 sections as retaining wall posts with timber sleepers, the following installation sequence is typical:
- Lay out post positions: Mark post centres at your design spacing (commonly 1.8 m or 2.4 m). Ensure the flange faces are parallel to the wall face so sleepers slot into the web cavity.
- Auger or excavate holes: Hole depth = embedment depth + any blinding layer. For a 1.0 m retained height, a minimum 1.0–1.2 m embedment is common (refer engineer for specifics).
- Set posts in concrete: Backfill the hole with N20 or N25 concrete. Ensure posts are plumb and aligned before concrete sets. Brace temporarily if needed.
- Install sleepers: Slide sleepers horizontally into the flanges from the top, stacking tightly. Standard 200 mm × 75 mm hardwood or treated pine sleepers suit the 133 mm flange width well.
- Backfill and compact: Backfill in layers with suitable fill, compacting away from the wall to avoid overloading posts before concrete has fully cured (allow minimum 7 days).
Drainage behind the wall is critical — install a geotextile-wrapped gravel drain or slotted agricultural pipe at the base to prevent hydrostatic pressure build-up, which can dramatically increase loads on the posts.
200UB18 vs Other Sizes: When to Go Bigger (or Smaller)
The 200UB18 is not always the right choice. Here’s a quick comparison to help you decide:
| Section | Mass (kg/m) | Zx (×10³ mm³) | Best For |
|---|---|---|---|
| 150UB14 | 14.0 | 89 | Very low walls (<0.8 m), light applications |
| 180UB16 | 16.1 | 120 | Low walls (0.8–1.0 m), light surcharge |
| 200UB18 | 18.2 | 160 | Residential walls 0.9–1.5 m, standard surcharge |
| 200UB22 | 22.3 | 194 | Walls 1.2–1.8 m, moderate surcharge |
| 200UB25 | 25.4 | 232 | Walls 1.5–2.0 m, higher surcharge |
| 250UB25 | 25.7 | 306 | Taller walls, commercial applications |
The 200UB18 sits in the sweet spot for the vast majority of suburban retaining wall projects across Melbourne and regional Victoria. It’s strong enough for standard loads, light enough to handle on site, and widely available from steel suppliers.
Sourcing 200UB18 Steel Beams in Victoria
RW Steel Victoria supplies 200UB18 sections to builders, landscapers, and homeowners across Melbourne and regional Victoria. We offer:
- Cut-to-length service — order exactly what you need
- Galvanised and mill-finish options
- Fast dispatch and delivery across Victoria
- Competitive pricing with no minimum order on standard lengths
View completed projects using our steel sections in our project gallery, or request a quote for your specific requirements. Our team is happy to advise on section selection — just contact RW Steel Victoria and we’ll help you get the right steel for your project.
