When planning a retaining wall, one of the most critical decisions you’ll make is selecting the right type of steel post. In Australia, Universal Columns (UC) are a go-to solution thanks to their proven strength, availability, and adaptability across a wide range of project sizes.
Whether you’re building a low garden bed or a full-height structural retaining wall, choosing between 100UC14.8, 150UC30, 200UC52, or 250UC72.9 will significantly affect your wall’s performance, compliance, and long-term durability.
Understanding UC Steel Sections

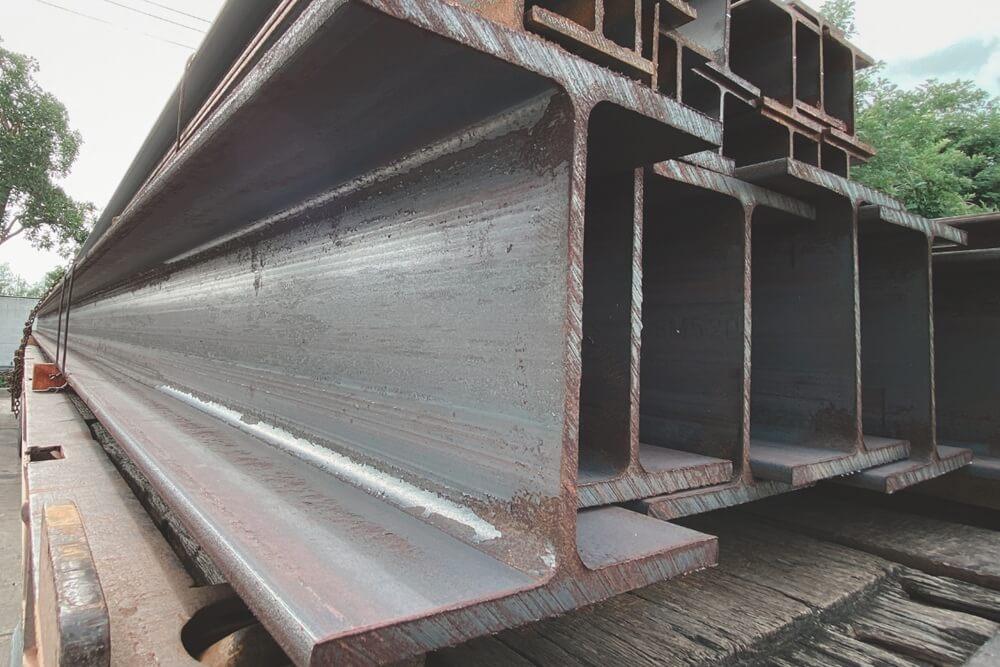

Universal Columns are hot-rolled steel profiles with a near-square cross-section. Their shape gives them excellent strength against both vertical and horizontal forces, making them ideal for retaining walls, especially on uneven ground or where soil pressure is a concern.
UC posts are typically installed vertically into concrete footings and used to hold sleepers (timber, concrete, or composite) in place. The numbers in their names refer to the depth in millimetres and weight in kilograms per metre — for example, 150UC30 is 150 mm deep and weighs 30 kg/m.
Here’s a quick guide to commonly used profiles:
- 100UC14.8 – Best for walls under 1 metre, raised garden beds, and light-duty applications.
- 150UC30 – Ideal for residential walls up to 1.5 metres in height; suitable for clay soils with good drainage.
- 250UC72.9 – Designed for tall or heavily loaded walls (over 2 metres), commercial landscapes, or sites with unstable ground.
Choosing the Right Post Based on Your Site
Your project’s wall height, soil conditions, and drainage are major factors in determining which UC size is appropriate:
- Wall height – Taller walls place more pressure on the structure, requiring a heavier-duty post.
- Soil type – Reactive or clay-heavy soils expand and contract, adding stress. In such cases, upgrade to stronger sections like 200UC59.9 or 250UC72.9.
- Slope and water flow – Sloped land or poor drainage means uneven load, which can lead to structural failure if the wrong post size is used.
A professional engineer can evaluate these conditions and recommend the right beam for compliance and durability.
Why Galvanised Steel Is Essential
No matter which UC section you choose, galvanisation is a must for any outdoor retaining wall. Galvanised steel is coated in zinc to prevent rust and corrosion — vital in areas like Melbourne where the climate brings regular rain, humidity, and seasonal changes.
Without galvanisation, even the strongest steel post will begin to deteriorate when exposed to moisture and soil contact. Hot-dip galvanised UC posts are standard in quality retaining wall construction and worth the investment for long-term peace of mind.
Installation and Compliance Tips
The strength of your wall depends just as much on installation as it does on material choice. Here are a few best practices:
- Concrete footings – Posts should be embedded at least one-third of the wall height into concrete. Use a high-strength mix (25 MPa or above).
- Post spacing – Spans between posts must be calculated based on the wall’s height and soil pressure. Wider spans may require heavier sections like 200UC46.2.
- Level and alignment – Use string lines and a spirit level to set posts plumb before concrete sets.
- Regulations – In Victoria, walls over 1 metre often require engineering approval and council permits.
Even if your wall is under that height, it’s always best to check local rules and consult a qualified steel supplier or builder.
Sourcing the Right Steel Matters
One final consideration is where you source your materials. Working with a local steel supplier ensures you get UC sections that meet Australian Standards, are already galvanised, and cut to the correct lengths. Many Melbourne-based suppliers also offer guidance based on your soil type, wall height, and local council requirements. This added support can help prevent costly errors and streamline your project timeline — especially if you’re managing multiple trades or building stages.
Conclusion
Choosing the right UC steel post is essential to building a strong, compliant, and long-lasting retaining wall. Whether you’re using 100UC14.8 for a garden border or 250UC72.9 for a commercial project, matching the steel section to your specific site conditions ensures structural integrity and peace of mind.
Don’t overlook the importance of galvanisation, proper footing depth, and local regulations. A well-planned wall using quality UC sections will not only serve its purpose — it’ll also add long-term value to your outdoor space.
